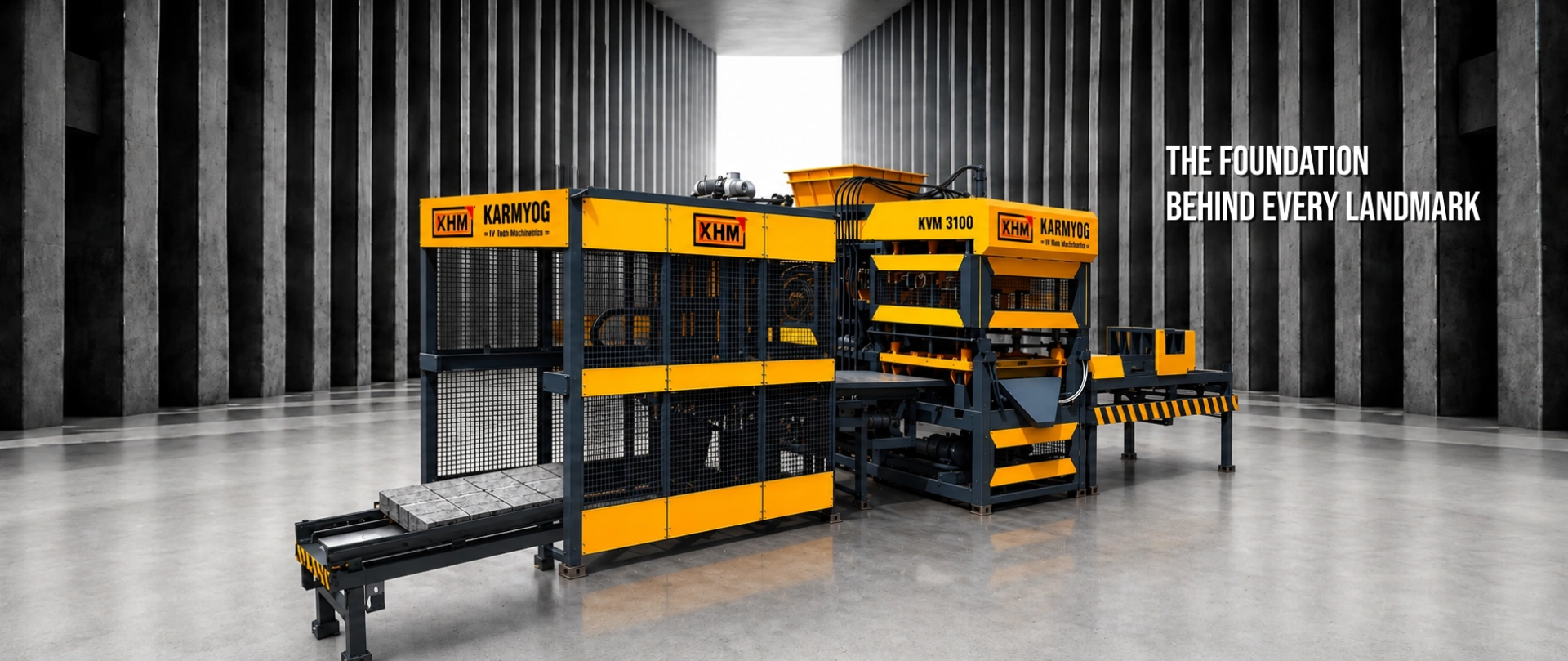

Technical Specifications of KHM-3100
| No. | SPECIFICATIONS | KHM-3100 |
|---|---|---|
| 1 | Compaction Technology | Integrated High-Frequency Vibration synchronized with calibrated hydraulic compression force. |
| 2 | Vibration Frequency | 0–90 Hz range; features variable amplitude control to facilitate deep, uniform aggregate density across the entire vertical profile of the product. |
| 3 | Structural Isolation | Outfitted with high-grade elastomeric damping pads to attenuate vibration transfer to the primary chassis, reducing structural fatigue and extending the duty cycle of both the mould and the machine assembly. |
| 4 | Cycle Time | 20 – 25 Sec. depends on concrete product type. |
| 5 | Installed Capacity | 65.5 HP/49 kw (3 Phase) excluding Batching Plant & Front-end stacker. |
| 6 | Land | Minimum 3000 sq. meter for complete installation including raw material dump area, covered shed and finished product stacking area. |
| 7 | Shed | 50 X 50fts, Shed height – 20fts. |
| 8 | Labour | 8 unskilled and 1 skilled (approx.) depends on the automization level of the machine |
| 9 | Maximum Product Height | 300 – 500 mm as per product requirement |
| 10 | Hydraulic Oil | 400 liters. |
| 11 | Material Composition System | River sand, Stone Dust, stone chips, Cement and Water |
Production Capacity
Fly Ash Brick
230 × 115 × 75 (12)
- Pcs/Hours: 2,880
- Pcs/Shift: 23,040
Zig-Zag Paver
225 × 112.5 × 80 (12)
- Pcs/Hours: 2,520
- Pcs/Shift: 20,160
Solid Concrete Block
400 × 200 × 200 (3)
- Pcs/Hours: 540
- Pcs/Shift: 4,320
Hollow Block
400 × 200 × 200 (3)
- Pcs/Hours: 540
- Pcs/Shift: 4,320
I-Shape Paver
225 × 112.5 × 80 (8)
- Pcs/Hours: 1,680
- Pcs/Shift: 13,440
Hourdi Block
150 × 150 × 200 (3)
- Pcs/Hours: 540
- Pcs/Shift: 4,320
Retaining Block
456 × 305 × 203 (1)
- Pcs/Hours: 180
- Pcs/Shift: 1,440
Kerb Stone
390 × 250 × 150 (2)
- Pcs/Hours: 360
- Pcs/Shift: 2,880
TECHNOLOGY FEATURES
VFD-Controlled High-Frequency Vibration
Smart PLC Automation
Hydraulic Vibro Compaction Technology
Fully Automatic Production Line & High Outcome
Wear-Resistant Precision Moulds
Height Strength Concrete Blocks & Consistent Density
Multi Product Versatality
Precision Hydraulics for uninterrupted operation
Long Mould Life
Real-Time Production Monitoring
