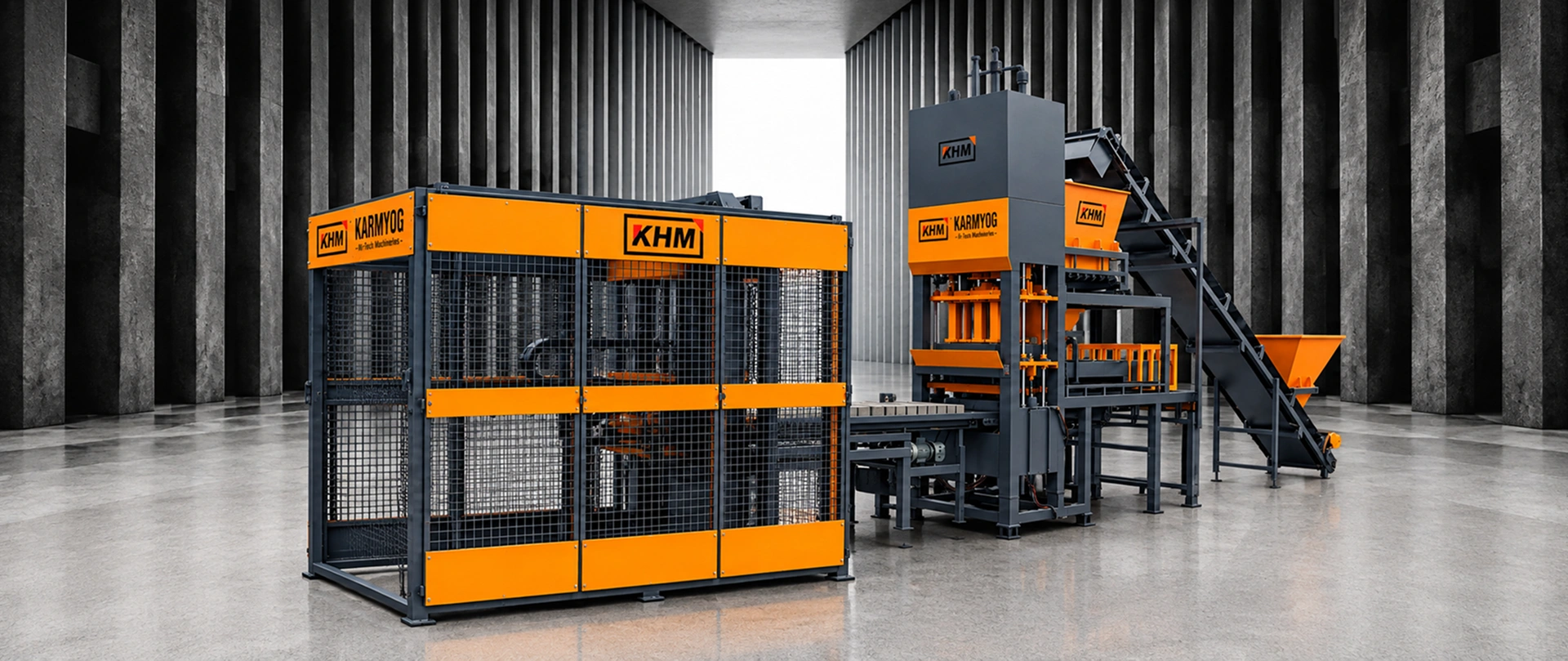

Fly Ash Bricks Making Machine Manufacturer in India.
Karmyog Hi-Tech Machineries is one of India’s pioneers in Fly Ash Bricks Making Machine manufacturing, with a legacy dating back to 1996.
Karmyog’s fly ash brick making machines incorporate advanced Hydro-Vibro Technology, high-frequency vibration, precision hydraulics and PLC-based automation to ensure controlled material feeding, effective compaction and strength of M7-M10 and accurate brick formation.
Our strong after-sales service and technical support network is an integral part of our business philosophy. With an 80% customer retention ratio, our long-standing customer relationships reflect the trust manufacturers place in Karmyog for machinery.
Advanced Technology
850+ Machines Installed
30 Years of Expertise
Trusted Across India
Technology Features

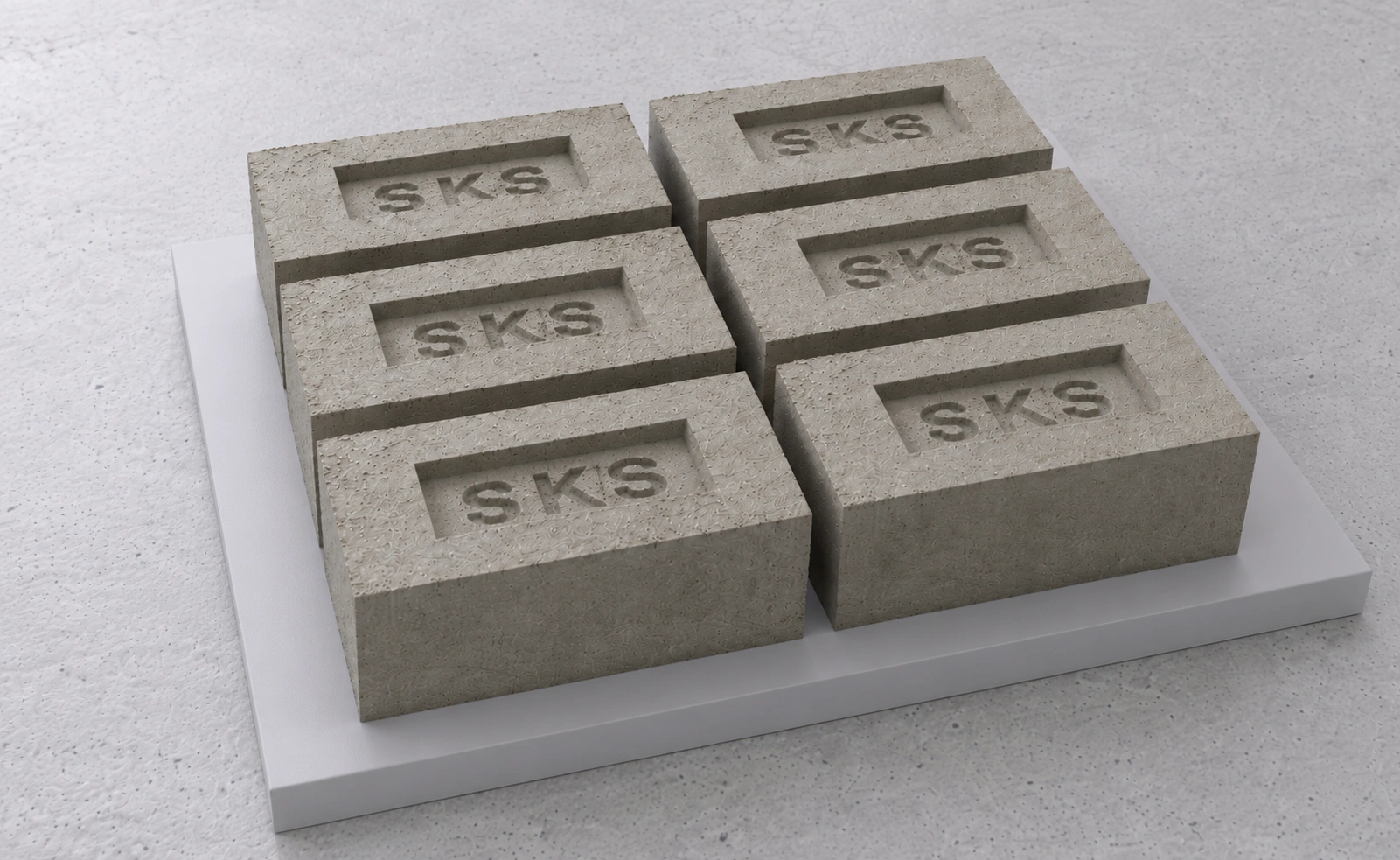

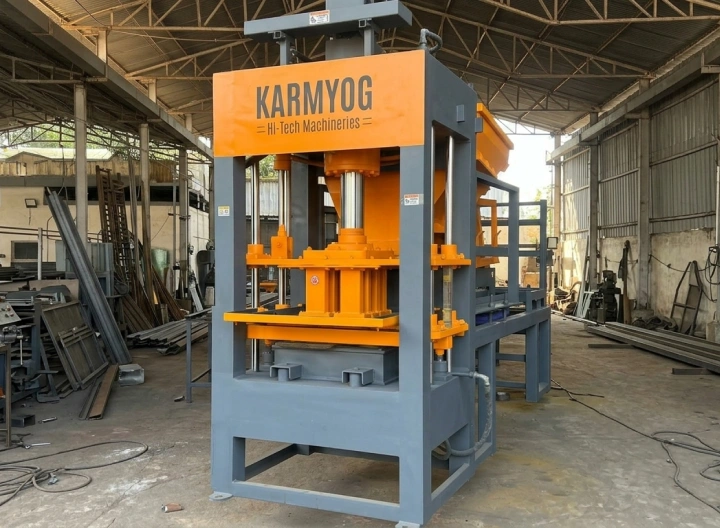

KHM 72
Production Capacity: 1,440 bricks/hour
- The ideal entry-level machine offering budget-friendly rates for new ventures entering the fly ash brick industry.
- Combines a low initial investment with reliable performance to help startups achieve quick profitability.
| SPECIFICATIONS | KHM-72 |
|---|---|
| Tonnage Pressure | 72 Tons with Bottom Vibration |
| Cycle Time | 15 – 20 Sec. |
| Installed Capacity | 30.5 hp, 23 kw (3 Phase) excluding Batching Plant & Front-end stacker. |
| Land | Minimum 2000 sq. meter |
| Shed | 50 X 50fts, Shed height – 20fts. |
| Labour | 8 unskilled and 1 skilled(approx.) |
| Production Capacity | 6 Bricks/Stroke 1440/Hour (approx.) |
| Fly Ash Bricks Size | 230mm X 110mm X 75mm |
| Hydraulic Oil | 350 liters |
| Compaction Technology | Hydraulic Compaction with Vibration |
| Material Composition System | Fly Ash, Sand/Stone Dust, Gypsum / Lime, Cement and Water |
| SPECIFICATIONS | KHM-120 |
|---|---|
| Tonnage Pressure | 120 Tons with Bottom Vibration |
| Cycle Time | 15 – 20 Sec. |
| Installed Capacity | 43 hp, 33 kw (3 Phase) excluding Batching Plant & Front-end stacker. |
| Land | Minimum 2000 sq. meter |
| Shed | 50 X 50fts, Shed height – 20fts. |
| Labour | 8 unskilled and 1 skilled (approx.) |
| Production Capacity | 10 Bricks/Stroke 2400/Hour (approx.) |
| Fly Ash Bricks Size | 230mm X 110mm X 75mm |
| Hydraulic Oil | 400 liters. |
| Compaction Technology | Hydraulic Compaction with Vibration |
| Material Composition System | Fly Ash, Sand/Stone Dust, Gypsum / Lime, Cement and Water |

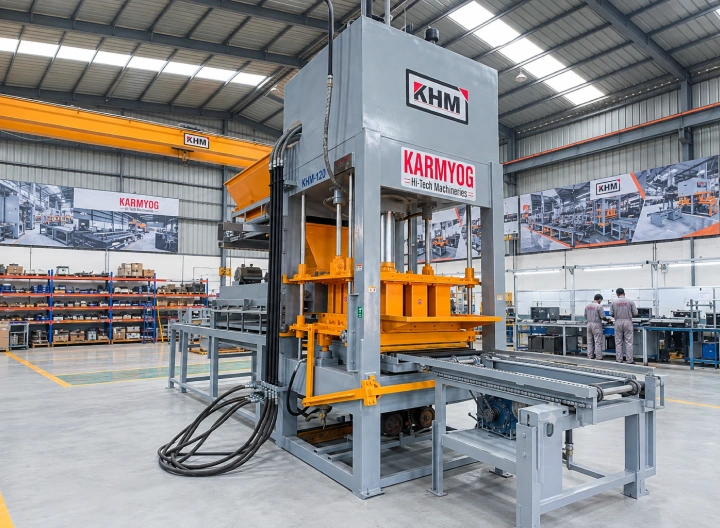

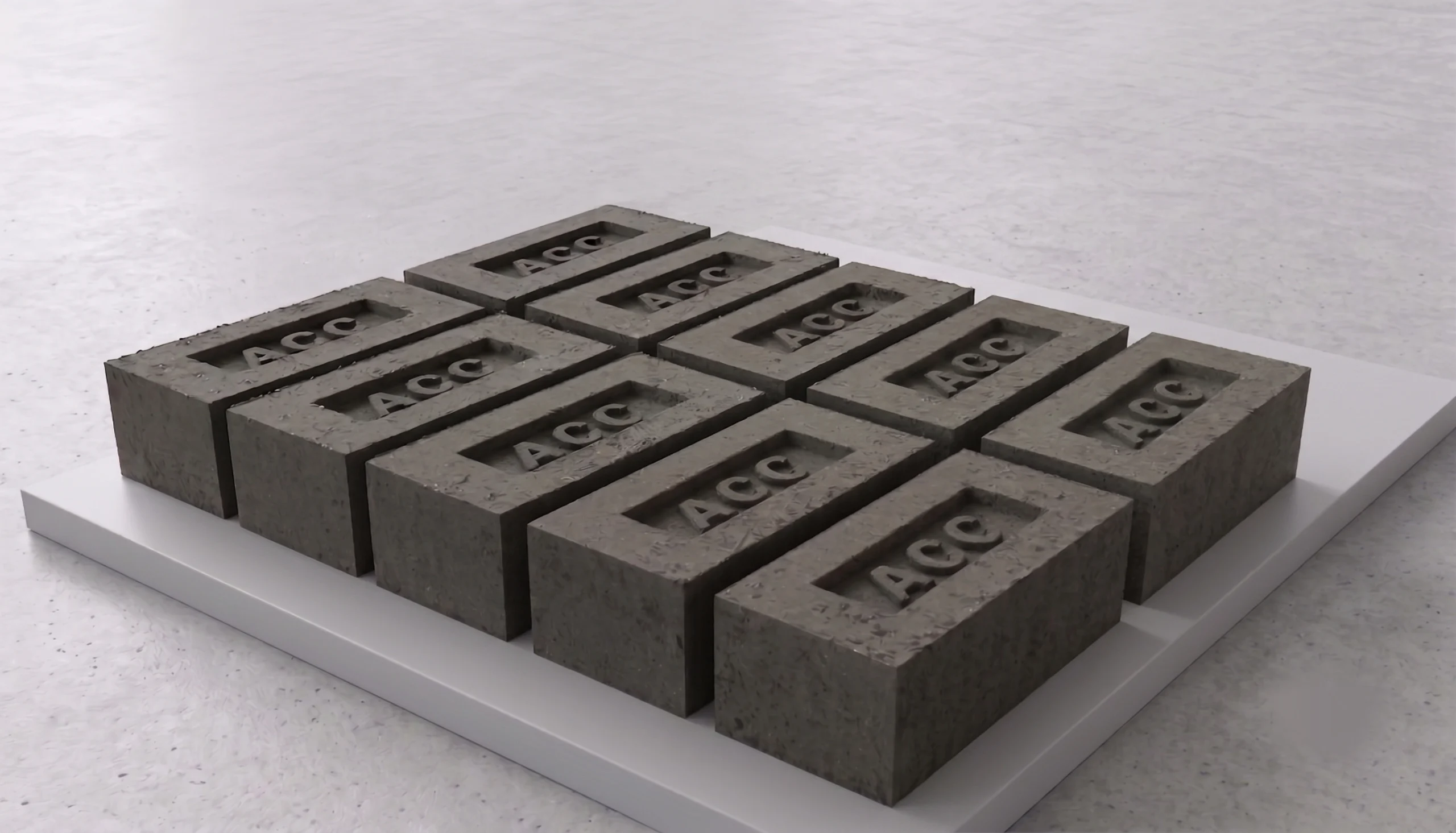

KHM 120
Production Capacity: 2,400 bricks/hour
- Our top-selling mid-tier model, specially designed for businesses with an established local market demand.
- Delivers the perfect balance of affordable pricing, proven reliability, accurate cycle time and boosted hourly output.

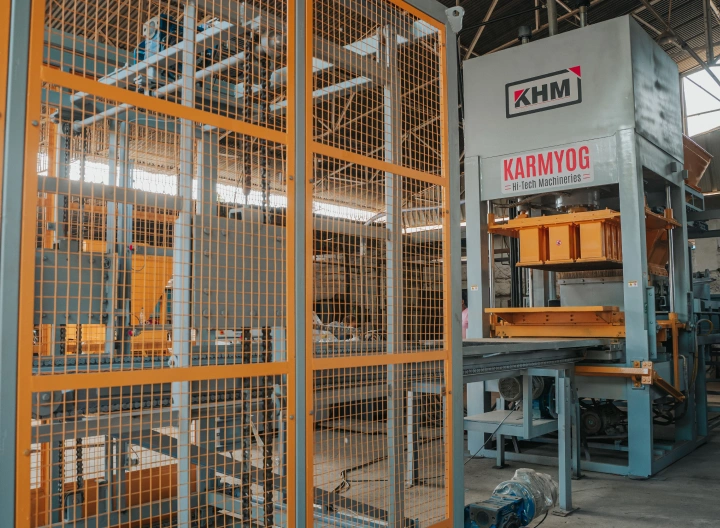

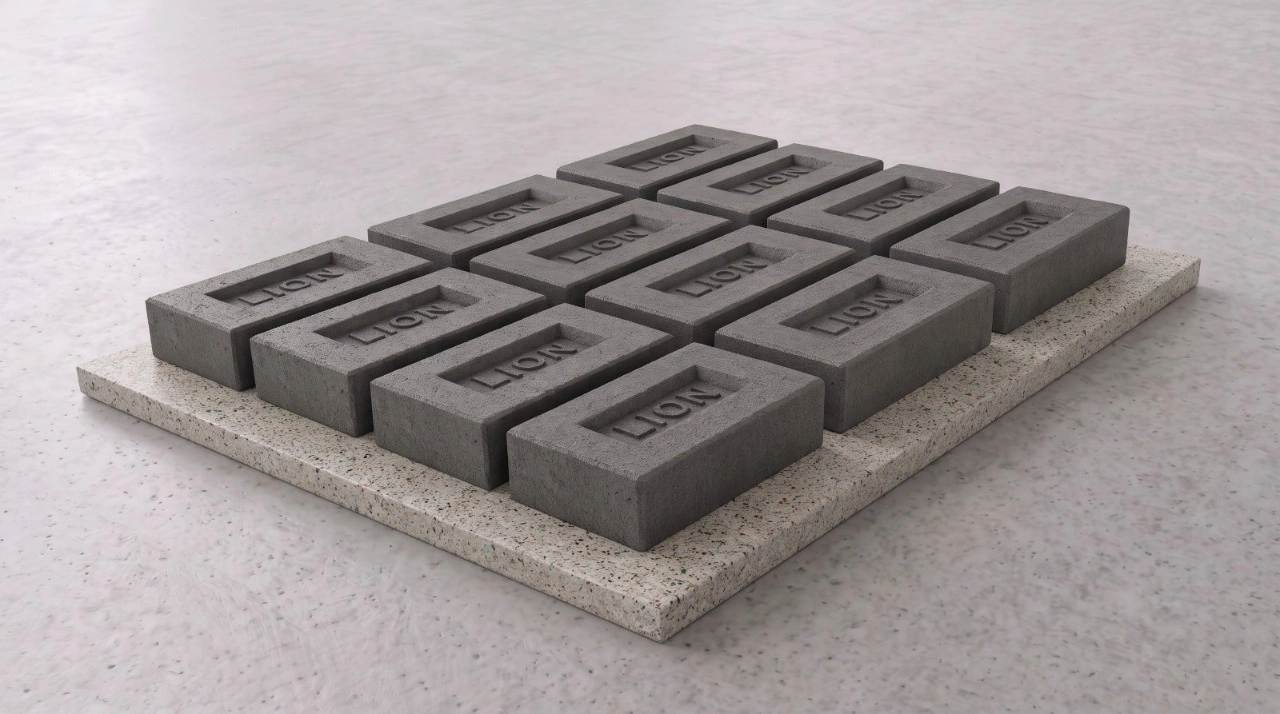

KHM 144
Production Capacity: 2,800 bricks/hour
- A powerful step-up model with accurate cycle time engineered for manufacturers scaling up operations beyond basic capacity.
- Provides higher hourly efficiency and heavy-frame durability to support growing distribution networks.
| SPECIFICATIONS | KHM-144 |
|---|---|
| Tonnage Pressure | 144 Tons with Bottom Vibration |
| Cycle Time | 15 – 20 Sec. |
| Installed Capacity | 45.5 hp, 35 kw (3 Phase) excluding Batching Plant & Front-end stacker. |
| Land | Minimum 2000 sq. meter |
| Shed | 50 X 50fts, Shed height – 20fts. |
| Labour | 8 unskilled and 1 skilled (approx.) |
| Production Capacity | 12 Bricks/Stroke 2880/Hour (approx.) |
| Fly Ash Bricks Size | 230mm X 110mm X 75mm |
| Hydraulic Oil | 400 liters. |
| Compaction Technology | Hydraulic Compaction with Vibration |
| Material Composition System | Fly Ash, Sand/Stone Dust, Gypsum / Lime, Cement and Water |

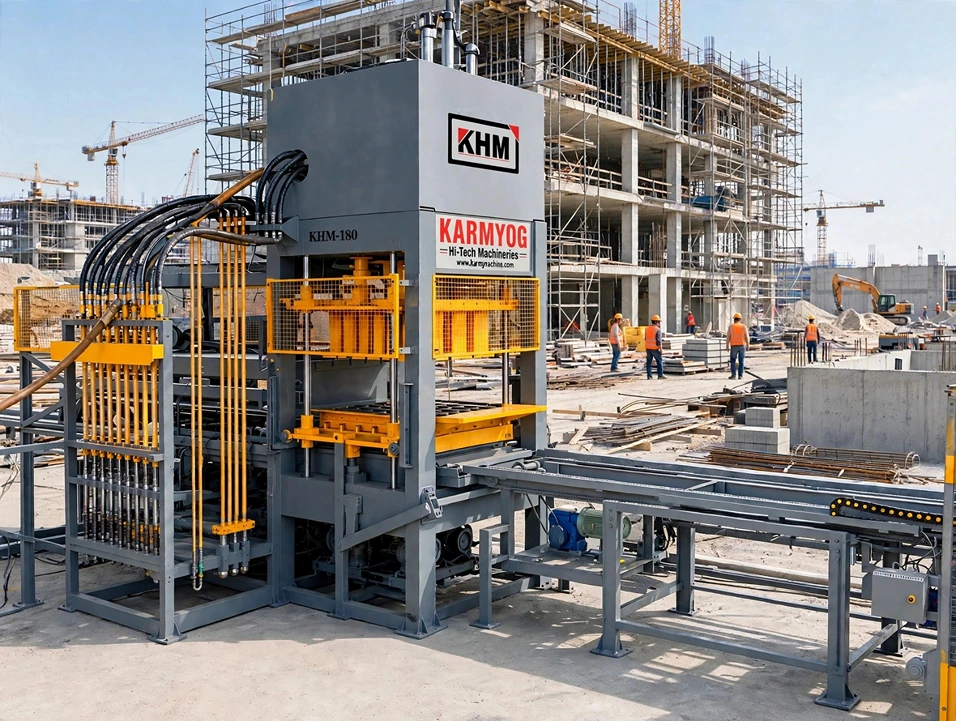

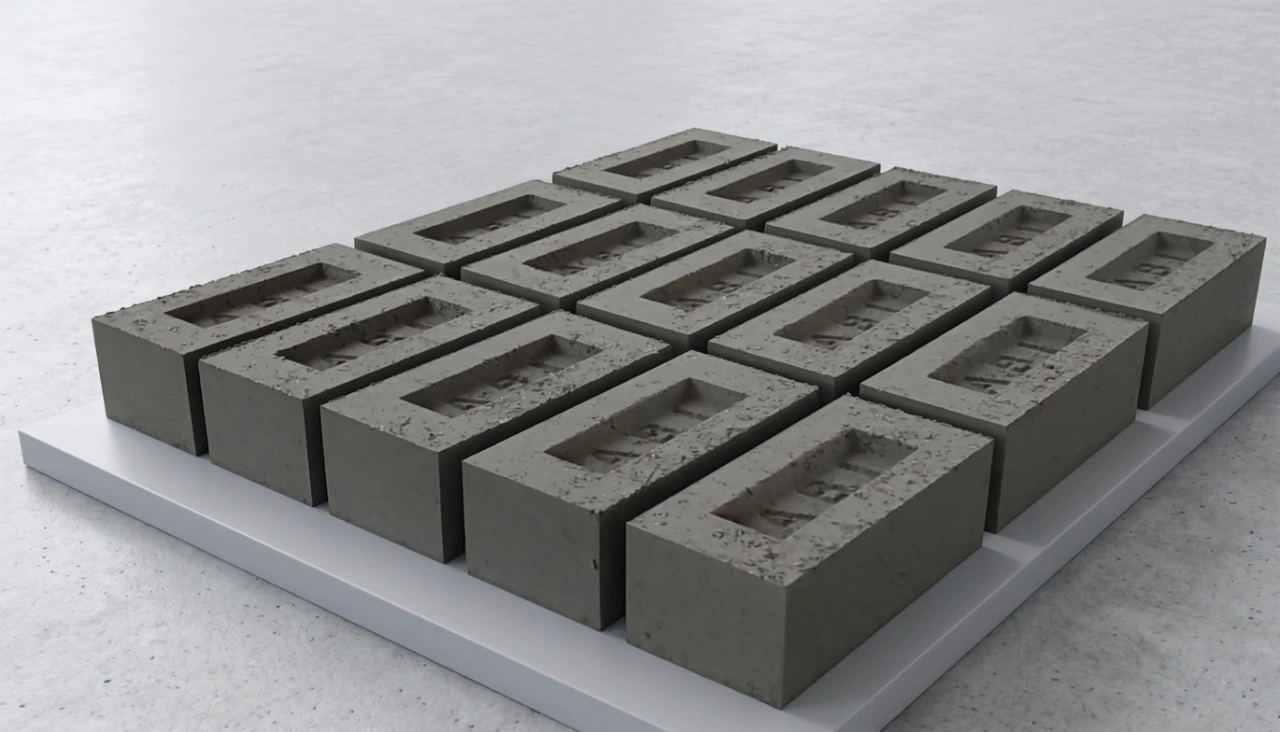

KHM 180
Production Capacity: 3,600 bricks/hour
- A fully automatic, with peak performance, heavy-duty plant built for high-speed cycle times and continuous daily manufacturing.
- Reduces labor requirements while significantly increasing total daily volume for high-demand operations.
| SPECIFICATIONS | KHM-180 |
|---|---|
| Tonnage Pressure | 180 Tons with Bottom Vibration |
| Cycle Time | 20 – 25 Sec. |
| Installed Capacity | 55.5 hp, 42 kw (3 Phase) Machine & Front-end stacker (excluding Batching Plant) |
| Land | Minimum 3000 sq. |
| Shed | 50 X 80fts, Shed height – 20fts. |
| Labour | 8 unskilled and 1 skilled (approx.) |
| Production Capacity | 15 Bricks/Stroke 3150/Hour (approx.) |
| Fly Ash Bricks Size | 230mm X 110mm X 75mm |
| Hydraulic Oil | 500 liters. |
| Compaction Technology | Hydraulic Compaction with Vibration |
| Material Composition System | Fly Ash, Sand/Stone Dust, Gypsum / Lime, Cement and Water |
| SPECIFICATIONS | KHM-252 |
|---|---|
| Tonnage Pressure | 252 Tons with Bottom Vibration |
| Cycle Time | 20– 25 Sec. |
| Installed Capacity | 76.5 hp, 57 kw (3 Phase) Machine & Front-end stacker (excluding Batching Plant). |
| Land | Minimum 4000 sq. meter |
| Shed | 50 X 80fts, Shed height – 20fts. |
| Labour | 8 unskilled and 1 skilled (approx.) |
| Production Capacity | 21 Bricks/Stroke 3780/Hour (approx.) |
| Fly Ash Bricks Size | 230mm X 110mm X 75mm |
| Hydraulic Oil | 500 liters. |
| Compaction Technology | Hydraulic Compaction with Vibration |
| Material Composition System | Fly Ash, Sand/Stone Dust, Gypsum / Lime, Cement and Water |

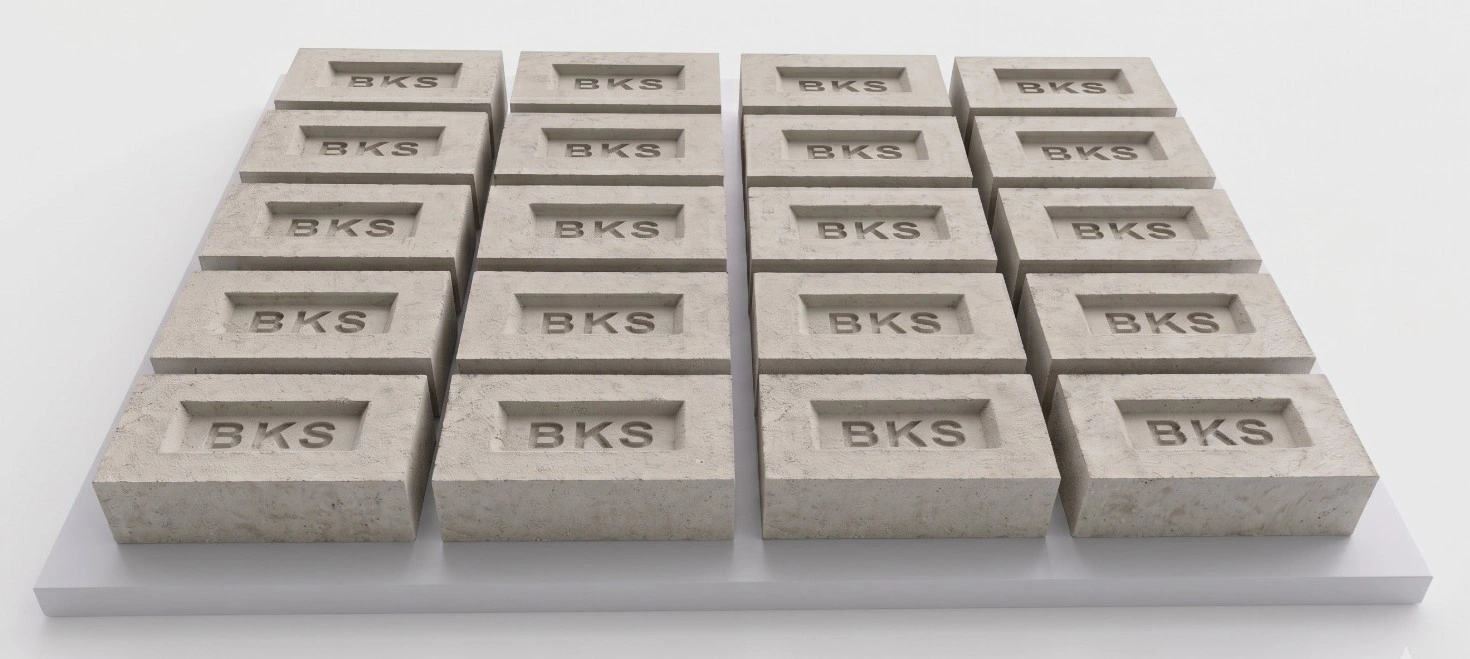

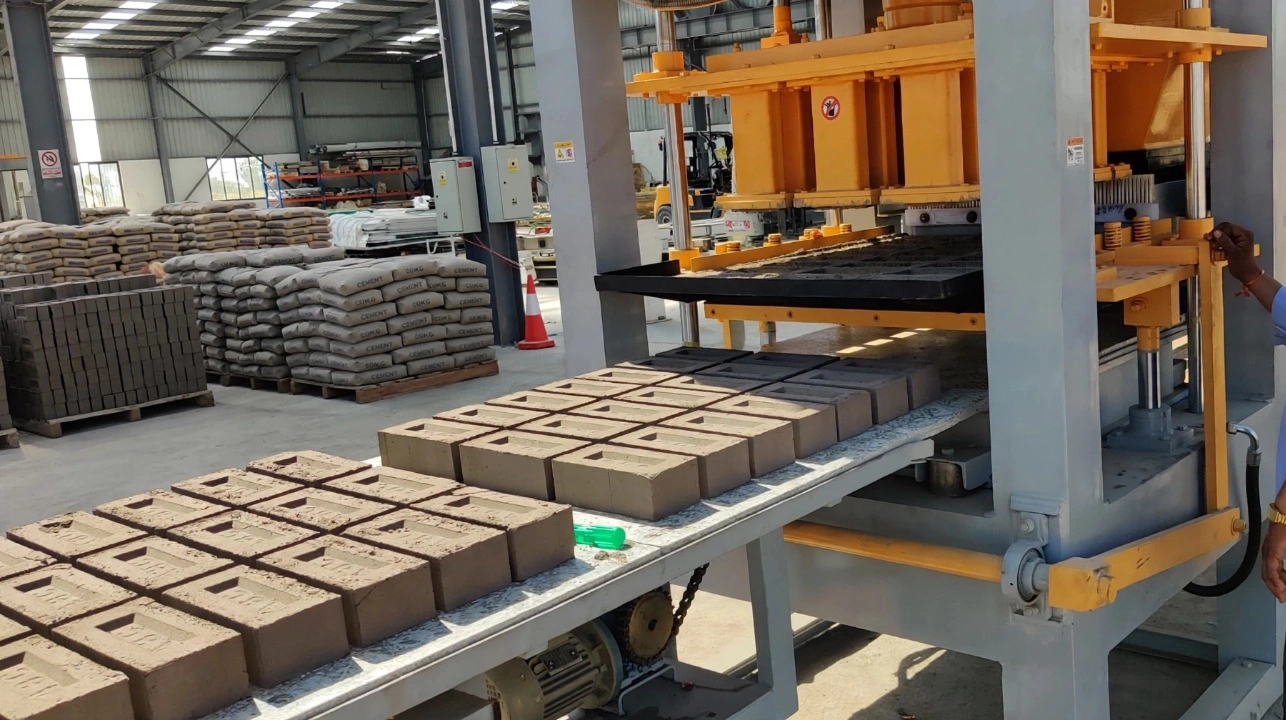

KHM 252
Production Capacity: 4,800 bricks/hour
- The flagship powerhouse of the Elite Series, Fully Automatic Fly Ash Bricks Making Machine, delivering maximum automated output for large-scale operations.
- Built for heavy-duty industrial scale and powered by an intelligent SCADA control system.The ultimate solution for massive scale.
